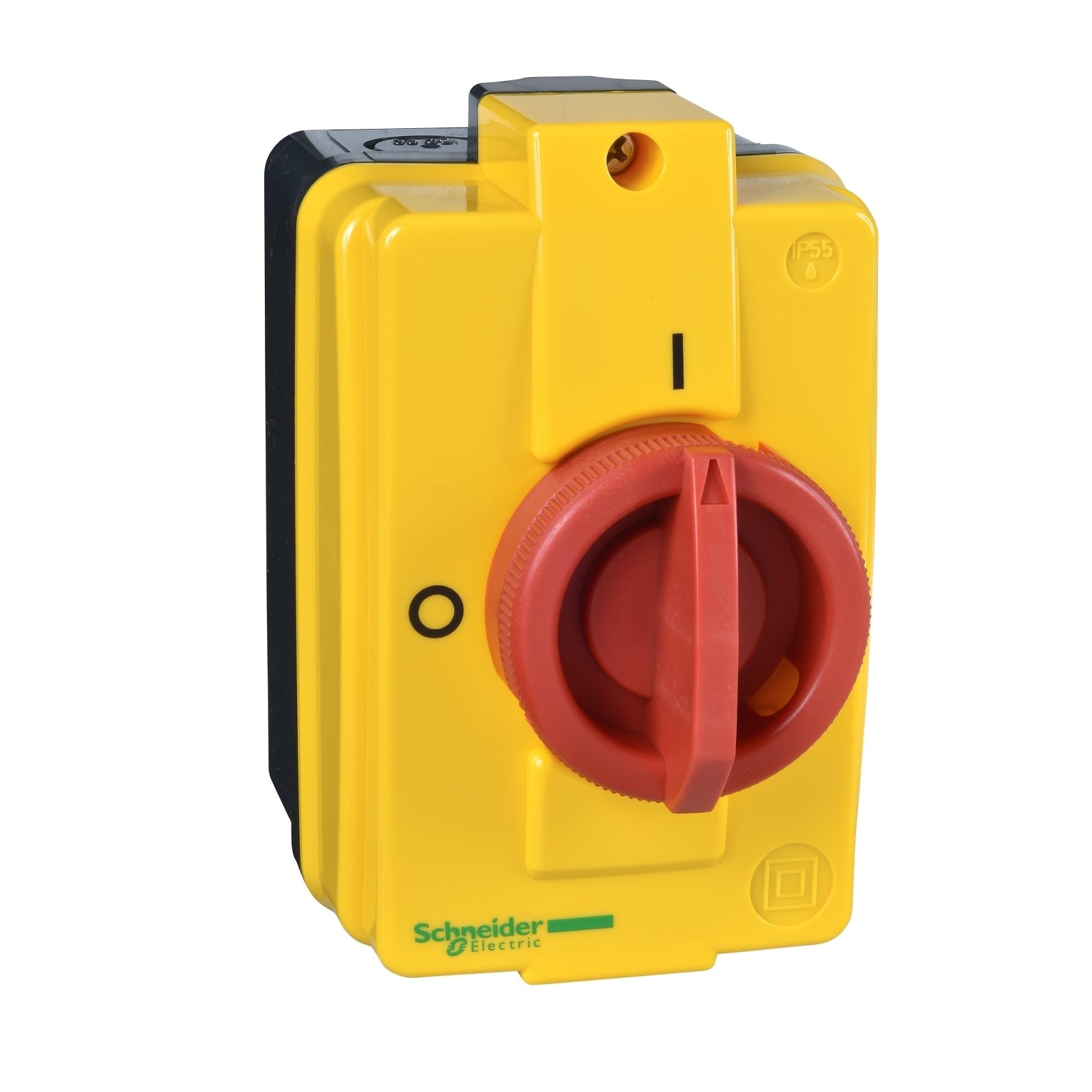

VCFN12GE TeSys Vario enclosed, emergency stop switch disconnector, 10A, IP55

The TeSys enclosed starter with switch disconnector is a robust solution for main and emergency stop switching in motor applications, offering reliable performance in demanding environments.

• Key Features:
  • High degree of waterproof and dustproof protection (IP55) for harsh environments.
  • Environmentally friendly materials ensure sustainability and compliance.
  • Easy operation with a red rotary handle on a yellow cover, featuring clear I/O marking.
  • Padlockable handle for enhanced safety (padlocks not included).
  • Simple surface mounting with screw fixing and pre-formed knock-outs for cable glands (top and bottom).
  • Sealable cover for added security.
• Performance:
  • Rated for 3 poles, Ithe 10A, 690V.
  • Suitable for motor applications up to 4kW @ 400V (AC-23).
  • Includes a 3-pole mini-Vario switch body (VN12) with two slots for optional add-on modules.
• Certifications: Compliant with IEC 60947-4-1 and Green Premium standards (RoHS/REACh).

Ideal for reliable motor control and emergency stop applications, the TeSys enclosed starter combines safety, durability, and ease of use in a compact design.
