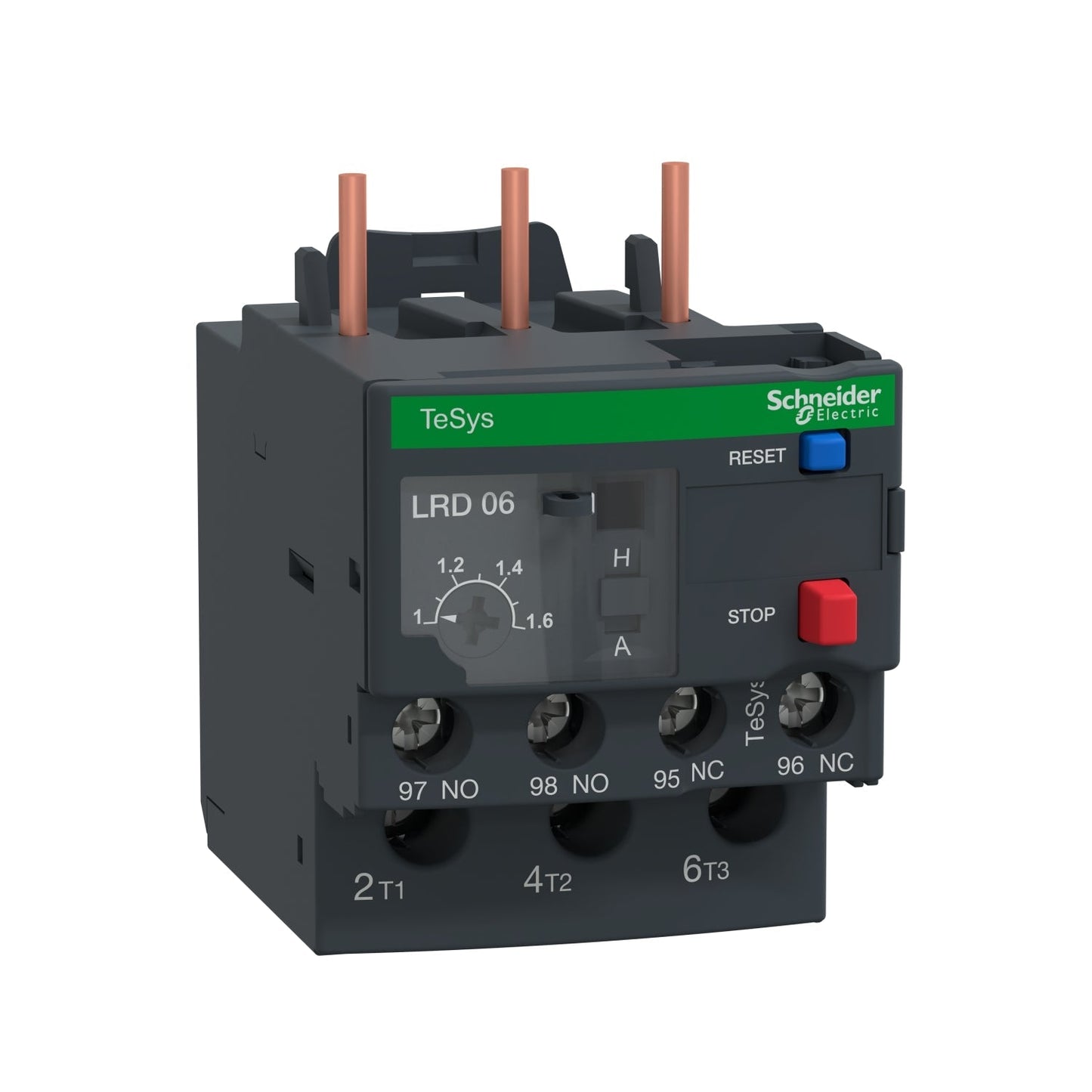

LRD06 TeSys Deca thermal overload relays,1...1.6A,class 10A

The TeSys Deca LRD thermal overload relay is a reliable solution for protecting AC circuits and motors against overloads and phase failures, offering ease of installation and advanced features for enhanced operational efficiency.

Key Features:

• Performance & Protection:
  • Thermal adjustment range: 1–1.6A.
  • Tripping class 10A, suitable for 3-phase motors up to 0.55kW @ 400V.
  • Differential protection against phase failure (loss).
• User-Friendly Design:
  • Equipped with a thermal adjustment dial for precise settings.
  • Manual/automatic reset selector and a test selector for simulating tripping.
  • Includes reset and stop buttons, along with a fault indicator flag.
  • Transparent cover to protect settings, lockable with a seal for added security.
• Auxiliary Contacts: Comes with 2 auxiliary contacts (1 NO + 1 NC) for fault signaling.
• Connectivity:
  • Screw clamp terminals for secure connections.
  • Can be mounted directly to LC1D09-D38 3-pole contactors or on DIN rail/screw fixing with a terminal block (LAD7B106, sold separately).

Certifications & Compliance:

• Certified to multiple standards: IEC, UL, CSA, CCC, EAC, ATEX, Marine.
• Eco-friendly Green Premium compliant (RoHS/REACh).

Enhanced Usability:

• Modern Design: Improved aesthetics for a professional look.
• Ease of Installation: Multi-standard screws simplify mounting and operation.
• Digital Support: Access technical documents and maintenance guides via EcoStruxure™ Facility Expert for a seamless experience.

The TeSys Deca LRD thermal overload relay is the ideal choice for reliable motor protection and efficient operation, blending modern design with advanced features.
