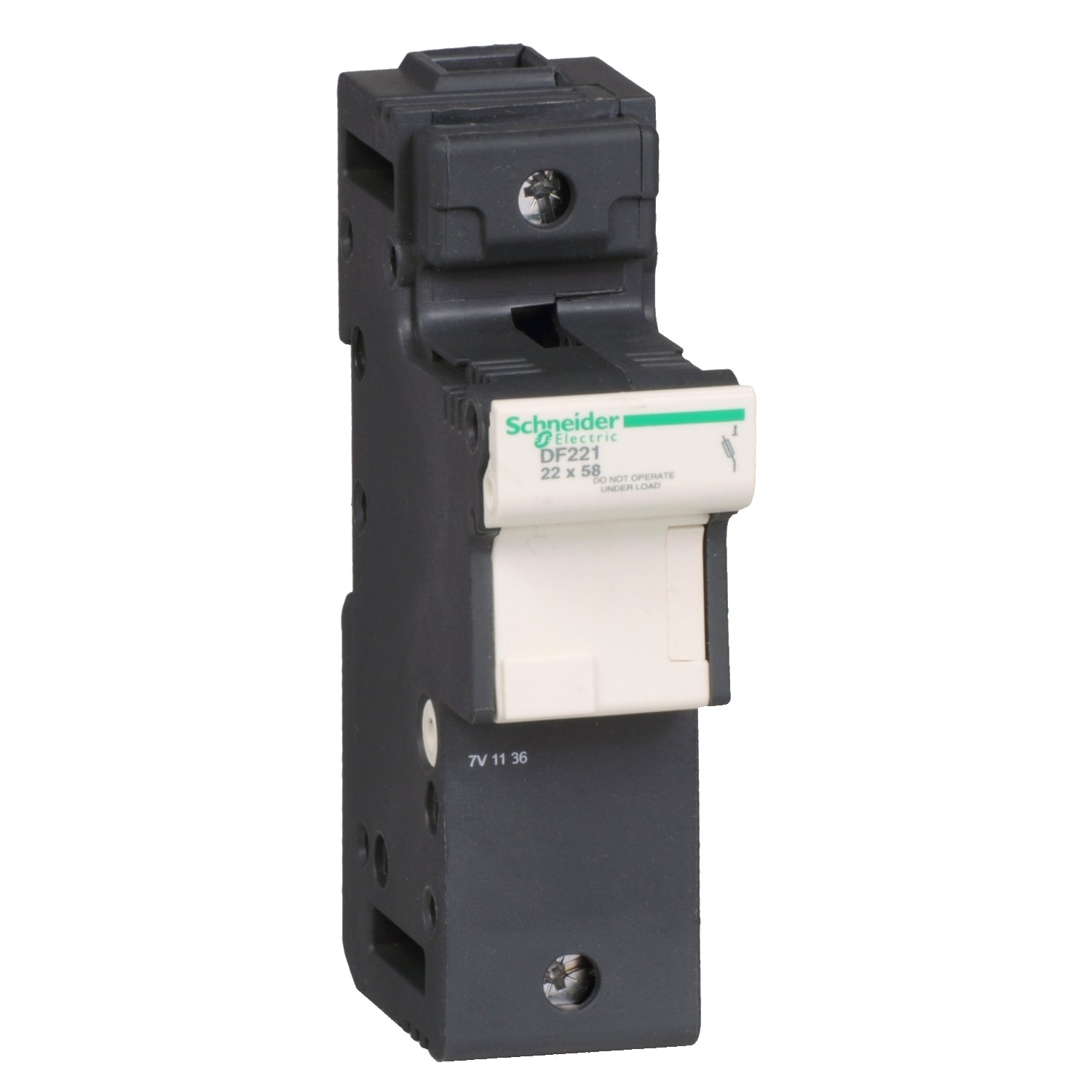

DF221 Fuse carrier, TeSys DF, 1P, 125A, 690VAC, fuse size 22x58mm

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA@400V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
