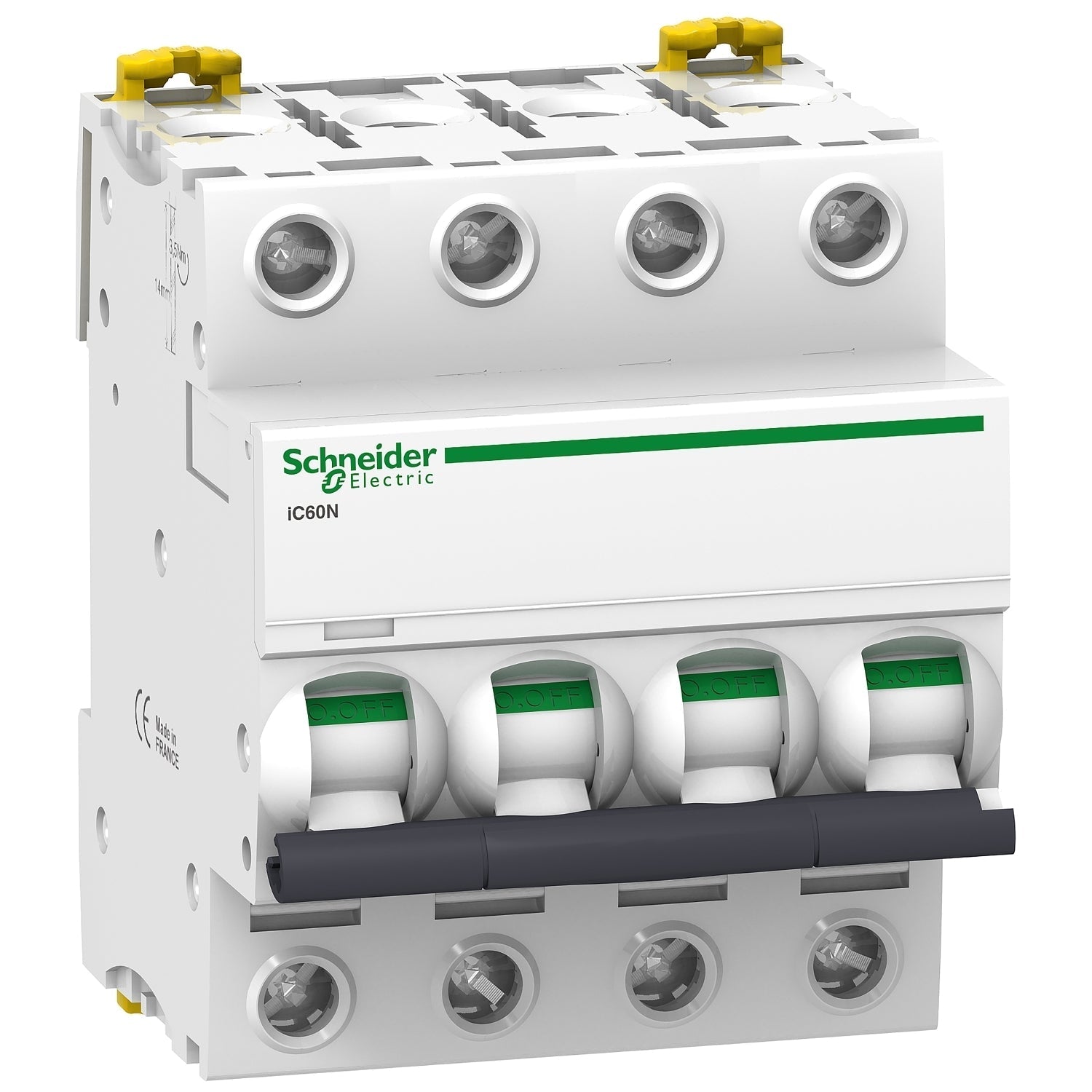

A9F74432 Schneider Electric Acti9 iC60N Miniature Circuit Breaker 4P C32A 6kA

The Schneider Electric Acti9 iC60N (A9F74432) is a 4-pole miniature circuit breaker (MCB) with a 32A current rating and C-curve tripping. Designed for protecting circuits against overloads and short circuits, it is suitable for residential and industrial applications alike.

Key Features:

• Rated breaking capacity:
    • 6kA at 400V AC (EN/IEC 60898-1)
    • 10kA at 240V AC (EN/IEC 60947-2)

• VisiTrip fault indicator for fast issue identification

• VisiSafe green strip confirms safe disconnection

• Electrical endurance: up to 10,000 cycles

• Mechanical endurance: up to 20,000 cycles

• Rated insulation voltage (Ui): 500V AC

• DIN rail mountable (8-module width = 72mm)

• Compact and reliable with IP20 protection (IP40 when enclosed)

• Temperature range: -35°C to +70°C

A dependable solution for safe power distribution and circuit protection in demanding environments.
