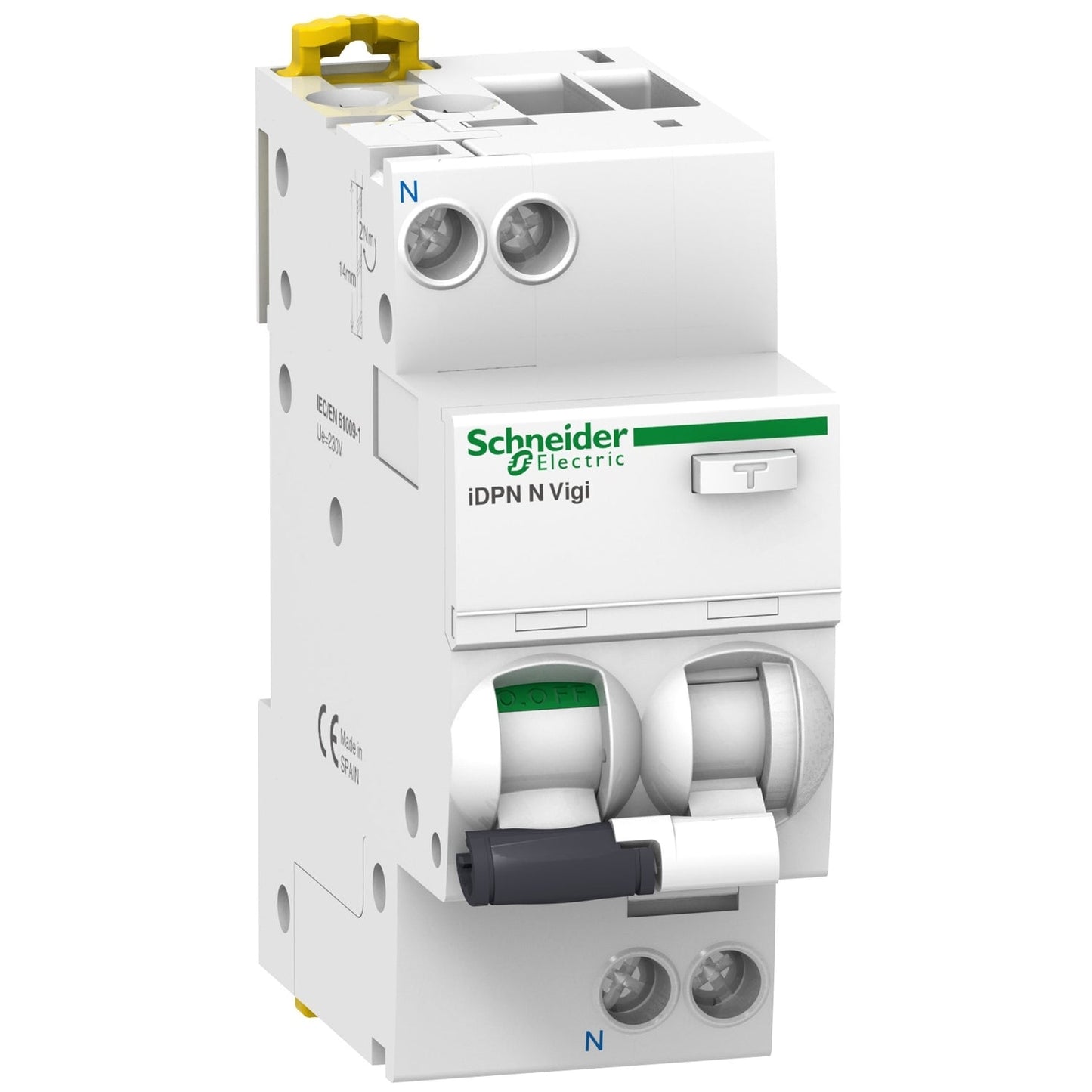

A9D56620 Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 20A, B curve, 6000A, A type, 30mA

Acti9 iDPN Vigi Modular RCBO, 20A, Type A, 30mA

The Acti9 iDPN Vigi is a compact residual current breaker with overcurrent protection (RCBO), offering enhanced safety for electrical installations.

Key Features

• Rated Current: 20A, with B tripping curve.
• Earth Leakage Protection: Type A with 30mA sensitivity and instantaneous time delay.
• Short Circuit Capacity: Rated for up to 6000A (EN/IEC 61009-2-1 compliant).
• Protection: Safeguards against short circuits, cable overload, electrical shocks, and fire hazards.
• Durability:
  • Electrical endurance: 20,000 cycles.
  • Mechanical endurance: 20,000 cycles.

Specifications

• Voltage: 220-240VAC operational, 400VAC insulation, 4kV impulse withstand.
• Mounting: DIN rail, 4 modules (36mm width).
• Protection: IP20 (IP40 in modular enclosure).
• Temperature Range: Operates from -25°C to 60°C.

This RCBO is ideal for residential and industrial electrical protection, ensuring safety and reliability.
