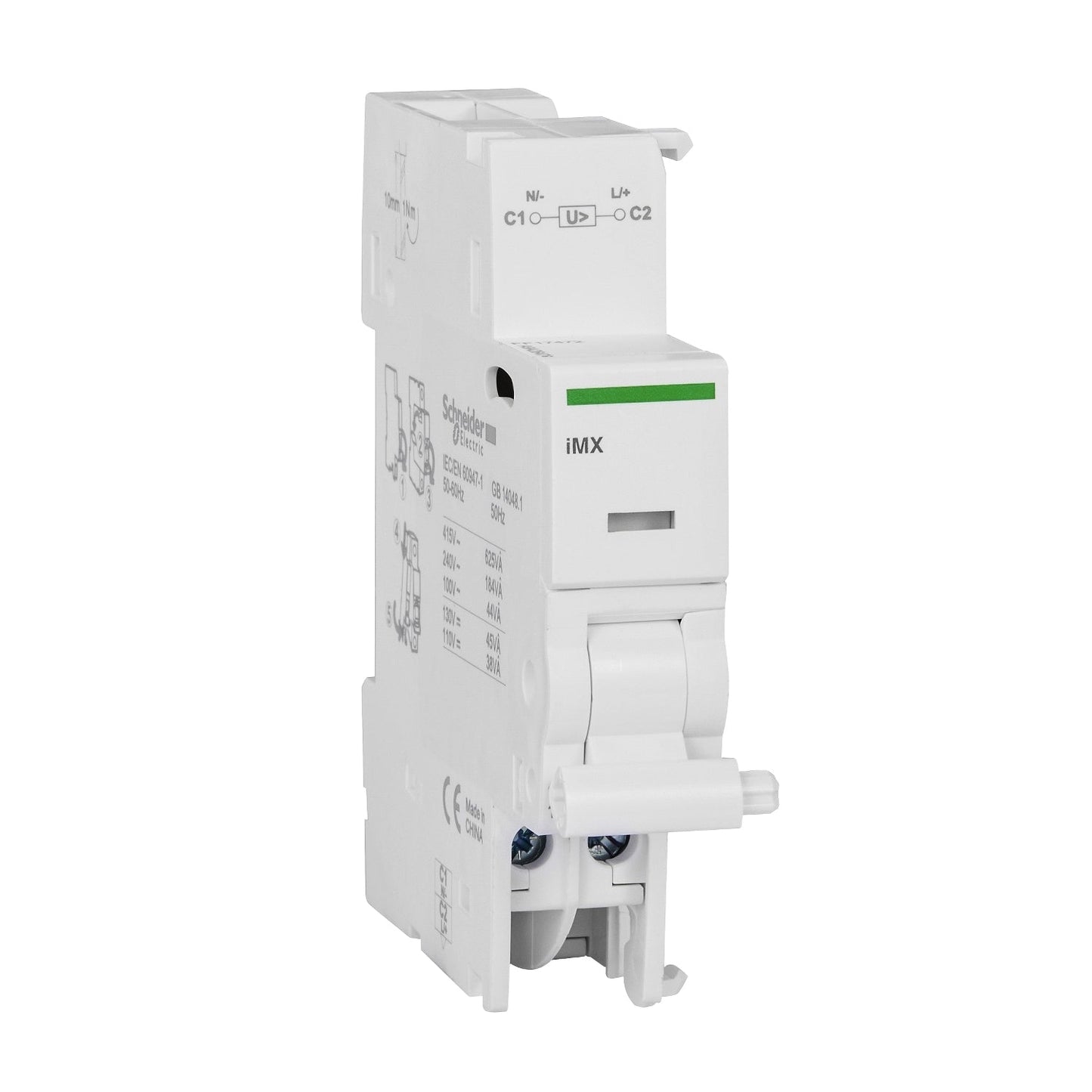

A9A26476 Schneider Electric Shunt trip release, Acti9, iMX, voltage release, 100...415 V AC

The Acti9 iMX is a reliable and efficient shunt trip release auxiliary designed for emergency disconnection and remote tripping of Acti9 modular devices. It ensures safe and convenient operation for industrial and commercial applications.

Key Features:

• Functionality:
  • Triggers the associated device when powered.
  • Emergency stop using a normally open push button.
• Compatibility: Works with Acti9 devices such as iC60, iID, iDPN Vigi, iSW-NA, and others.
• Control Voltage:
  • AC: 100...415V, 50/60Hz
  • DC: 110...130V

Design & Installation:

• Width: 18mm (2 x 9mm pitch)
• Mounting: DIN rail clip-on installation
• Connections:
  • Supports flexible and rigid cables up to 6 mm²
  • Top and bottom comb busbar and distribution block compatible
• Color: White (RAL9003)

Durability & Environment:

• Operating Temperature: -25°C to +50°C
• Storage Temperature: -40°C to +85°C
• Tropicalization: Conforms to EN/IEC 60947-5-1
• Relative Humidity: Up to 95% at 55°C

Certifications & Standards:

• Standards: EN/IEC 60947-1, EN/IEC 60947-5-1

The Acti9 iMX Shunt Trip Release is an essential accessory for ensuring the safe operation of Acti9 devices, offering robust performance and seamless integration in modular systems.
