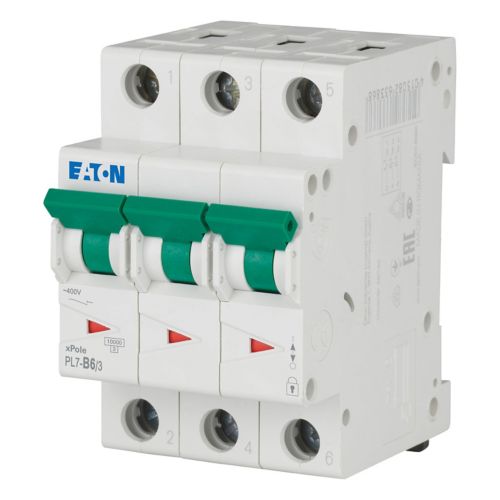

263386 Eaton PL7-B6/3 Miniature Circuit Breaker 6A 3P B

Description: The Eaton Moeller xPole - PL7 MCB is a three-pole miniature circuit breaker designed for residential and commercial applications. With a 6 A amperage rating and B tripping characteristic, it provides reliable protection against short circuits and overloads. The PL7 series offers high performance with a rated operational voltage of 400 V AC and a rated short-circuit breaking capacity of 10 kA at both 230 V and 400 V. It is compliant with RoHS and features a degree of protection IP20, ensuring safe operation in a variety of electrical systems.

Key Features:

• Type: Miniature Circuit Breaker (MCB).
• Model: xPole - PL7.
• Amperage Rating: 6 A.
• Number of Poles: 3 (Three-pole).
• Tripping Characteristic: B.
• Rated Operational Voltage: 400 V AC.
• Rated Insulation Voltage: 440 V.
• Rated Impulse Withstand Voltage: 4 kV.
• Rated Short-Circuit Breaking Capacity: 10 kA at 230 V and 400 V.
• Overvoltage Category: III.
• Pollution Degree: 2.
• Degree of Protection: IP20.
• Conductor Cross Section: 1 mm² to 25 mm² (solid and multi-wired).

Dimensions:

• Length/Depth: 71 mm.
• Height: 82 mm.
• Width: 52.8 mm.
• Weight: 0.36 kg.

This MCB is perfect for ensuring safe electrical circuits in both residential and commercial setups, offering high protection and ease of use.
