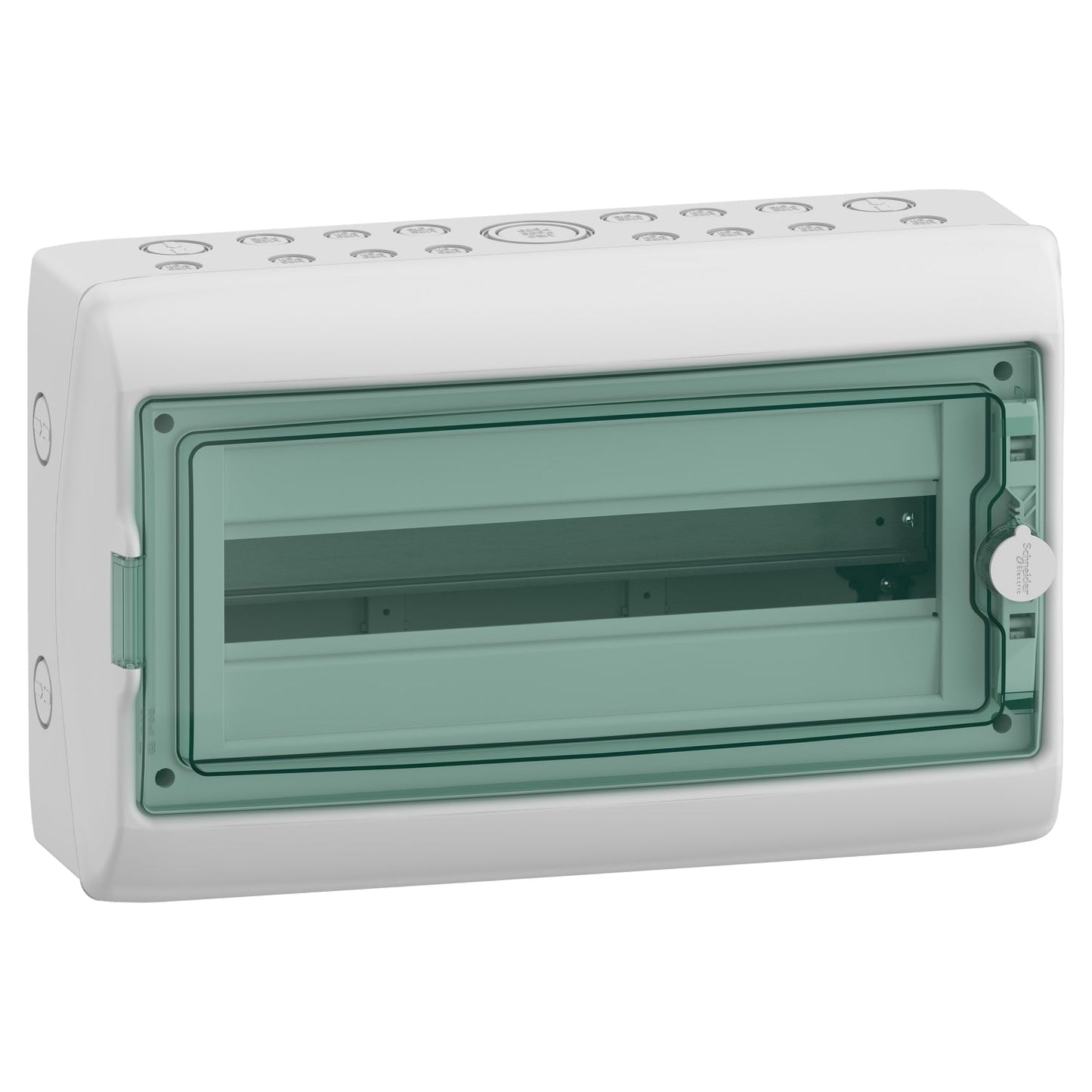

13982 Kaedra - for modular device - 1 x 18 modules - 1 terminal block

Kaedra Weatherproof Enclosure – 18-Module Capacity

The Kaedra weatherproof enclosure is a surface-mounted solution designed to house modular devices, offering exceptional durability and protection. With 1 row of 18 modules (18mm each), it accommodates all types of modular switchgear, making it versatile for a range of installations.

Key Features:

• Weatherproof and Durable: Rated IP65 for indoor or outdoor use, ensuring waterproof and dustproof performance. Made from self-extinguishing polymer material resistant to UV and flames up to 650°C (IEC 60695-2-1).
• Robust Design: Light grey (RAL 7035) enclosure with a transparent green door for visibility and aesthetics.
• Flexible Cable Management: Equipped with 17 pre-cutouts for cable entry at the top and bottom, plus a backplate and front cover with a notch for ease of installation.
• Enhanced Safety:
  • Double insulation (Class II) and overvoltage protection (Category II).
  • IK09 impact resistance and compliance with IEC 61439-3 standard.
• Convenient Components: Includes a DIN rail, marking kit, and terminal blocks for 20 outgoers (10x10mm² and 10x16mm²).
• Optimized Performance: Rated current up to 90A with a dissipated power of 34W. Operating temperature range from -25°C to 60°C.

Specifications:

• Dimensions: 448mm (W) x 280mm (H) x 160mm (D).
• Material: High-quality polymer with UV resistance.
• Applications: Ideal for residential, small buildings, and industrial environments.

A reliable, weatherproof enclosure combining flexibility, safety, and durability to meet your installation needs.
