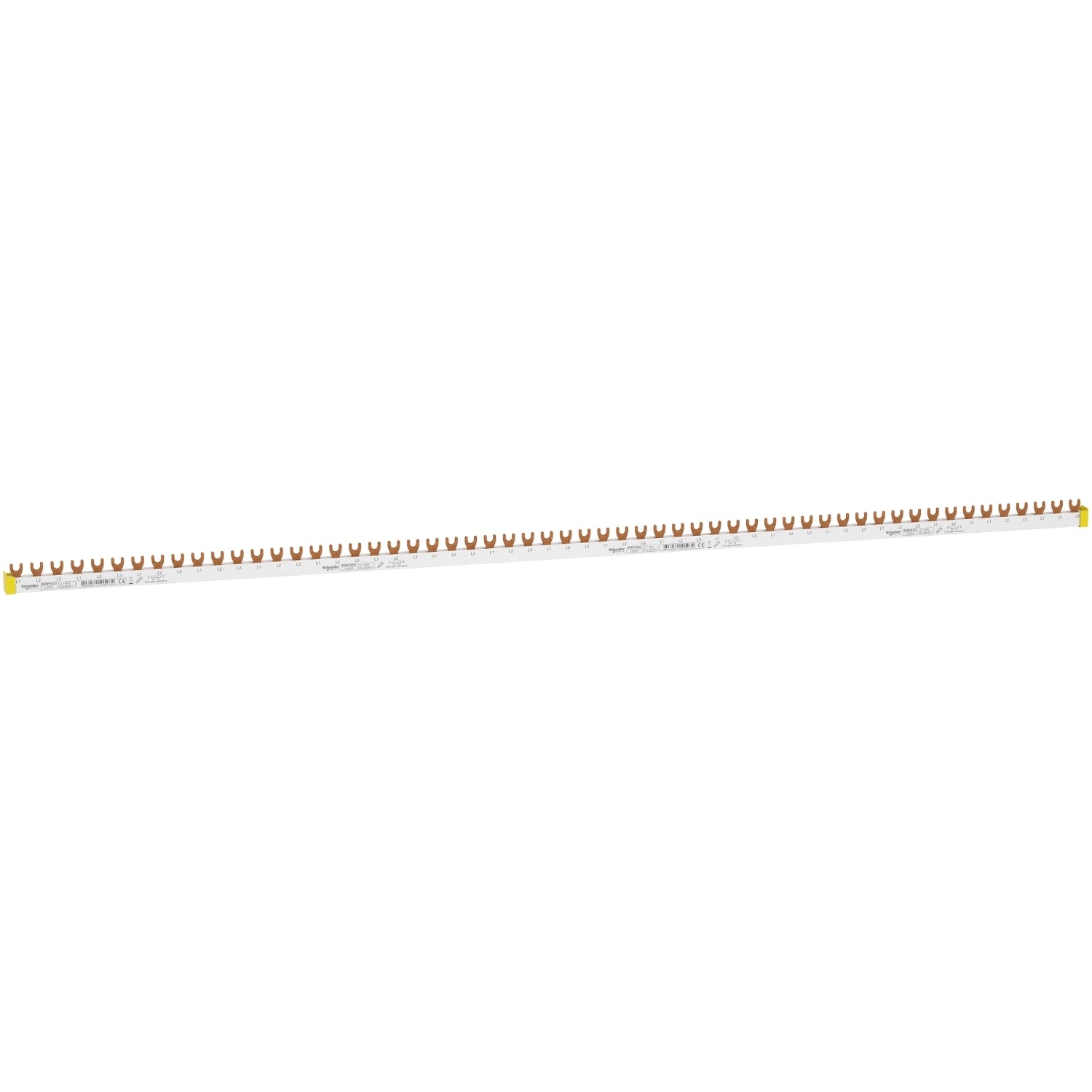

R9XFH357 Resi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 63 A

This Resi9 product is a horizontal comb busbar 57 modules. It is dedicated to 3L installations. The type is L1L2L3 (Line). It is a set of 1 device. It is suitable for 19 devices (3P). The length is 1000mm. The total number of modules of 18mm is 57. The distance between each way is 18mm. The Ie rated operational current at 40°C is 63A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 400VAC phase to phase. The color of the device is white (RAL9003).
