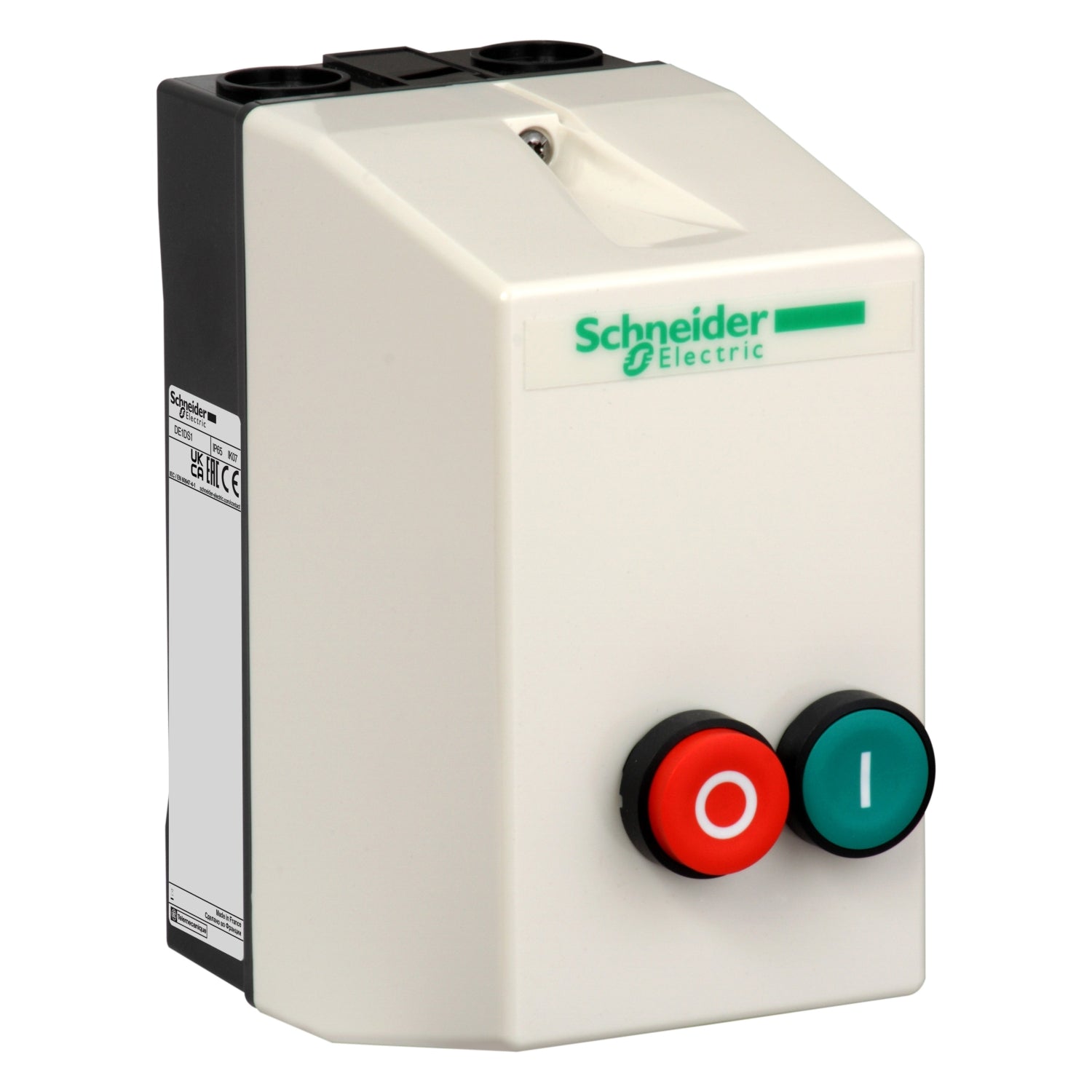

DE1DS1 TeSys LE - enclosure for DOL starter - with 2 pushbuttons

TeSys enclosed starters, empty enclosure for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 up to 5.5kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). Optimized for integration of a contactor LC1D09-D12 and thermal overload relay LRD02-LRD14 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1D09xx to LE1D12xx. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom.
