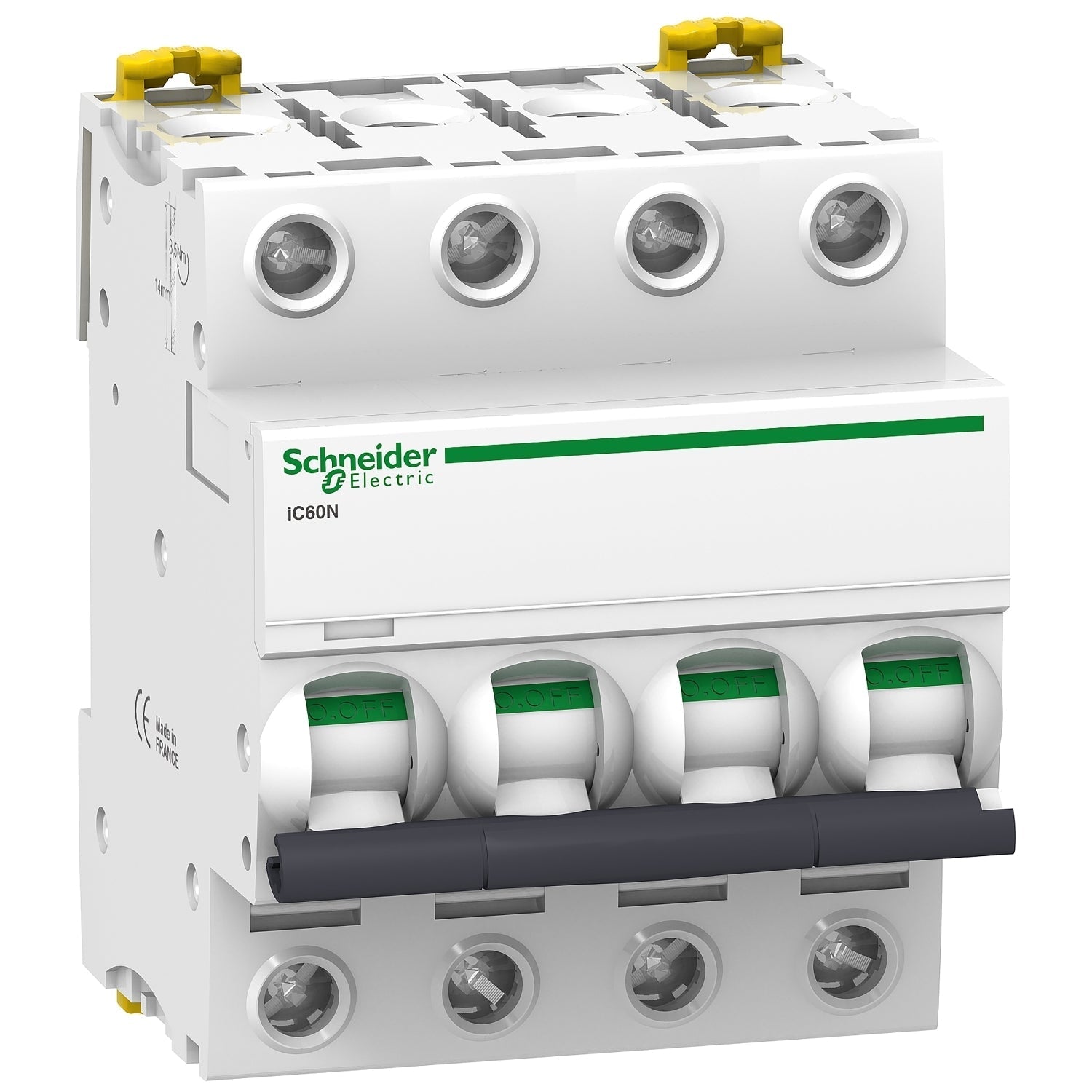

A9F74410 Schneider Electric Acti9 iC60N Miniature Circuit Breaker 4P C10A 10kA

The Schneider A9F74410 is a 10A, 4-pole miniature circuit breaker from the high-performance Acti9 iC60N series , offering reliable short circuit and overload protection. Engineered with advanced safety features such as VisiTrip fault indication and VisiSafe physical isolation , this MCB ensures enhanced maintenance visibility and electrical safety in residential, commercial, and industrial installations.

Key Features:

• Model : A9F74410

• Series : Acti9 iC60N

• Rated Current : 10A

• Poles : 4P (Four Pole)

• Tripping Curve : Type C – for moderate inrush current circuits

• Breaking Capacity :

  • 6kA @ 400V AC (IEC/EN 60898-1)

  • 10kA @ 240V AC (IEC/EN 60947-2)

• Insulation Voltage (Ui) : 500V AC

• Mounting : DIN Rail

• Electrical Endurance : 10,000 cycles

• Mechanical Endurance : 20,000 cycles

Safety & Functional Benefits:

• VisiTrip Indicator : Instantly shows tripped/faulty circuit

• VisiSafe Strip : Confirms physical disconnection during maintenance

• Current Limiting Class 3 : Reduces downstream circuit damage

• Fast-acting contact mechanism improves operational lifespan

• IP Rating : IP20 (open), IP40 (in enclosure)

• Operating Temperature : -35°C to +70°C

• Size : 72mm (W) x 85mm (H) x 78.5mm (D) | Weight : 0.5 kg

Applications:

• Residential power distribution

• Industrial control panels

• Three-phase load protection and system isolation
