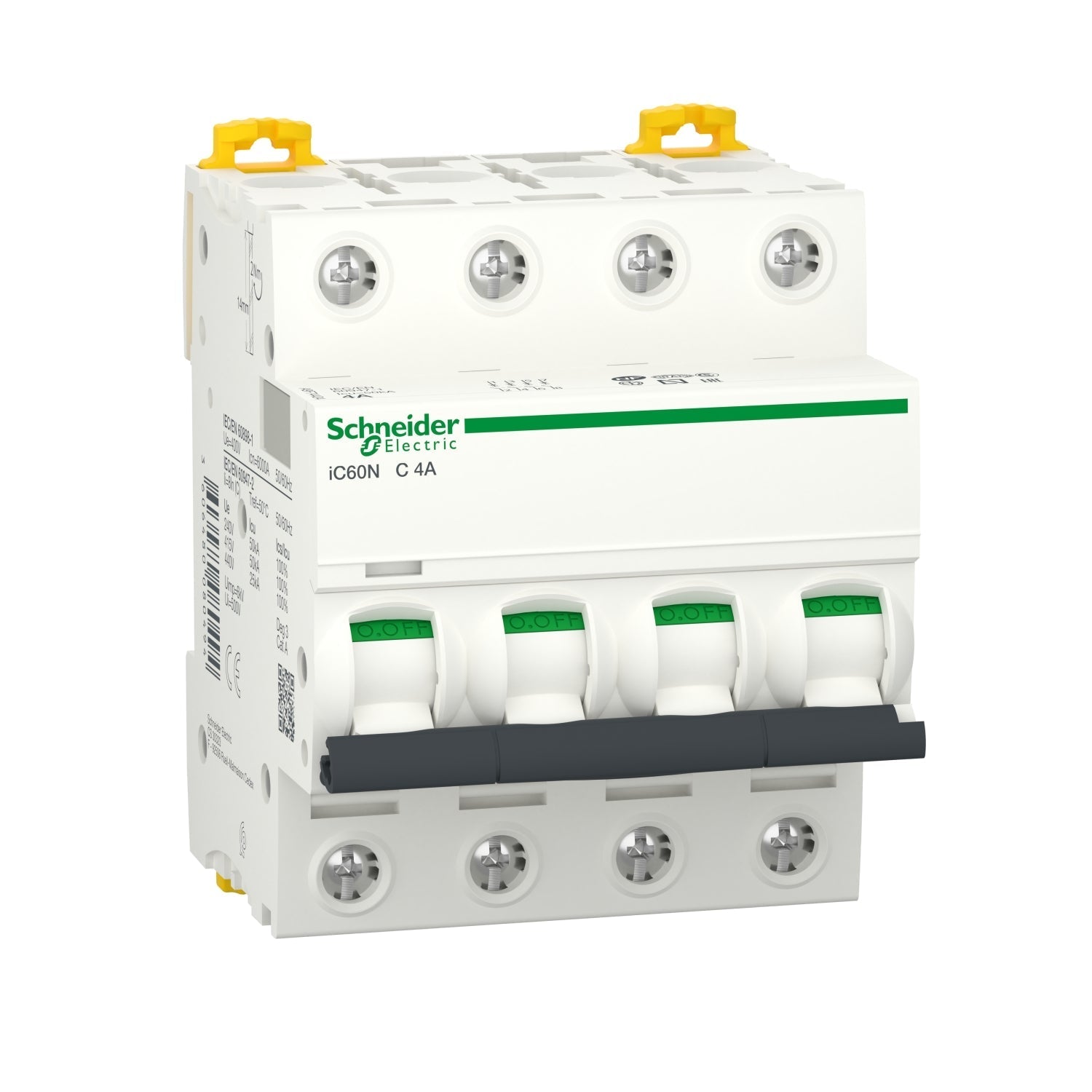

A9F74404 Schneider Electric Acti9 iC60N Miniature Circuit Breaker 4P C4A 50kA

The Schneider A9F74404 is a 4A 4-pole miniature circuit breaker (MCB) from the advanced Acti9 iC60N series , engineered for high-precision circuit protection in industrial and residential installations. With a Type C tripping curve , this breaker offers superior fault interruption with breaking capacities of 50kA (IEC/EN 60947-2) and 6kA (IEC/EN 60898-1). It also features VisiTrip and VisiSafe technologies for enhanced maintenance safety and visual diagnostics.

Key Features:

• Model : A9F74404

• Series : Acti9 iC60N

• Rated Current : 4A

• Poles : 4P (Four Pole)

• Tripping Curve : Type C

• Breaking Capacities :

  • 50kA @ 220-240V AC (IEC/EN 60947-2)

  • 6kA @ 400V AC (IEC/EN 60898-1)

• Insulation Voltage (Ui) : 500V AC

• Mounting : DIN Rail

• Endurance :

  • Electrical: 10,000 cycles

  • Mechanical: 20,000 cycles

• Limitation Class : Class 3

• Operating Temperature : -35°C to +70°C

• Dimensions : 72mm (W) x 85mm (H) x 78.5mm (D)

• Weight : 0.5kg

Advanced Features:

• VisiTrip Indicator : Instantly identifies the tripped circuit

• VisiSafe Green Strip : Confirms physical contact separation for safer maintenance

• Independent Fast Closing : Enhances durability and lifespan

• IP Rating : IP20 (open), IP40 (in enclosure)

• Overvoltage Category : IV | Pollution Degree : 3

Applications:

• Precision protection in industrial control systems

• Low-amperage circuits in residential and commercial settings

• Critical power infrastructure requiring high fault capacity
