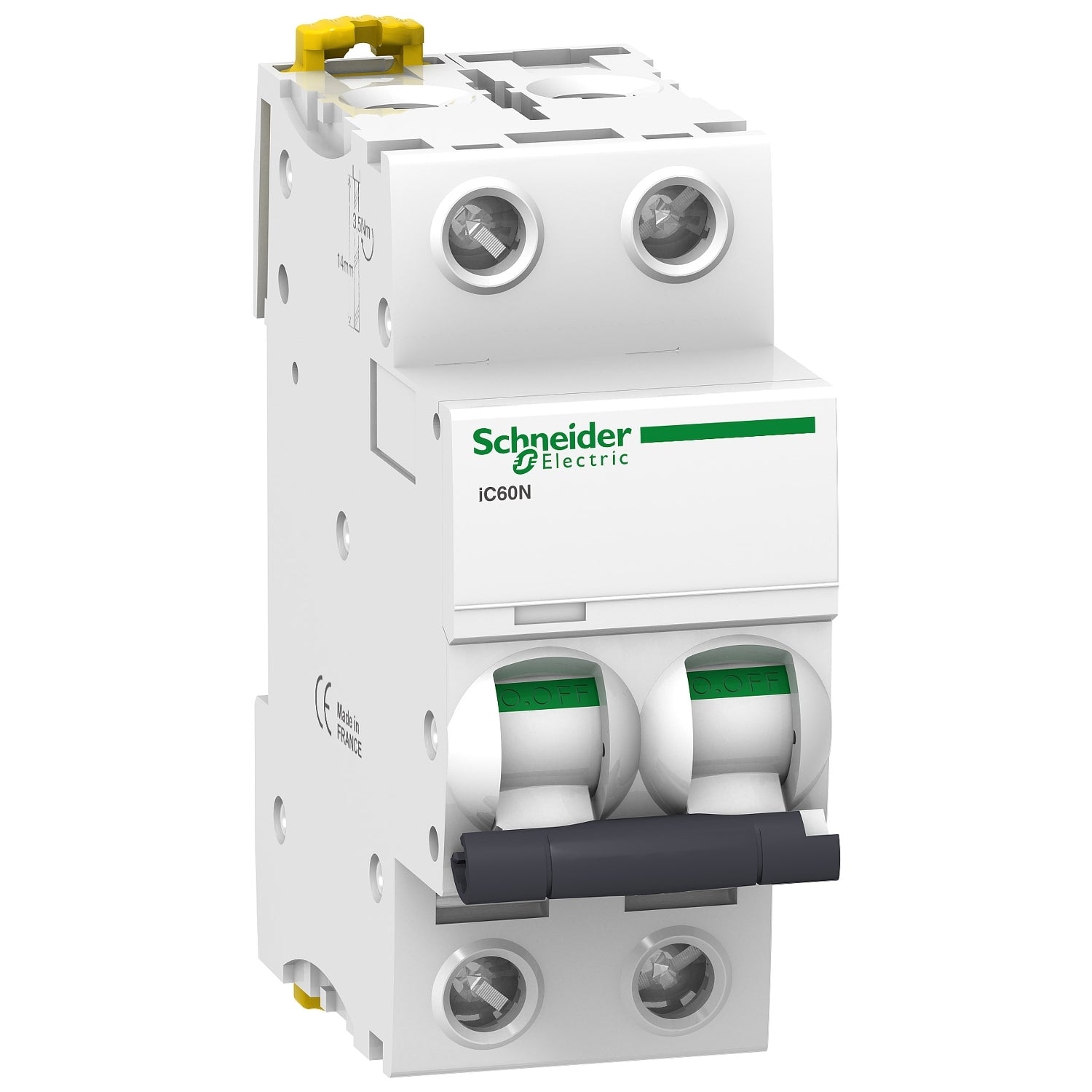

A9F74216 Schneider Electric Acti9 iC60N Miniature circuit breaker 2P C16A 6kA/20kA

The Schneider Electric Acti9 iC60N (A9F74216) is a 2-pole miniature circuit breaker (MCB) rated for 16A with a C-curve tripping characteristic. Designed to protect electrical circuits from overloads and short circuits, it meets both industrial and residential standards.

Key Features:

• Rated breaking capacity:
  • 6kA at 400V AC (EN/IEC 60898-1)
  • 20kA at 240V AC (EN/IEC 60947-2)

• Rated insulation voltage (Ui): 500V AC

• Electrical endurance: up to 10,000 cycles

• Mechanical endurance: up to 20,000 cycles

• VisiTrip indicator for fast fault detection

• VisiSafe green strip ensures safe downstream maintenance

• Fast-closing mechanism improves lifespan

• DIN rail mounting (4 modules, 36mm width)

• IP20 protection (IP40 when enclosed)

• Operating temperature: -35°C to +70°C

A compact and highly reliable solution for use in distribution boards and control panels where space and performance matter.
