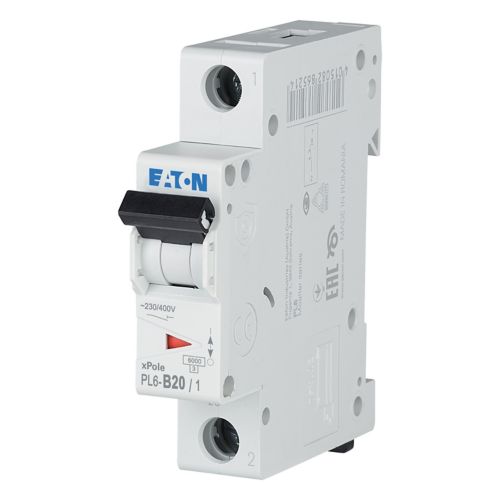

286522 Eaton PL6-B20/1 Miniature Circuit Breaker 20A 1P B 230V

The Eaton xPole PL6-B20/1 (286522) is a high-quality 20A single-pole miniature circuit breaker designed to deliver reliable protection for residential and commercial electrical systems. Built with a Type B tripping curve , this MCB is ideal for safeguarding branch circuits against overloads and short circuits while ensuring easy installation in compact switchgear assemblies.

Key Features:

• Rated Current : 20A

• Tripping Curve : Type B – ideal for resistive loads with low inrush currents

• Voltage Ratings : 230V AC operational; 440V insulation

• Breaking Capacity : 6kA (in accordance with EN 60898)

• Poles : 1P (Single Pole)

• Mounting : DIN Rail

• Dimensions : 85 mm (H) x 73 mm (D) x 17.7 mm (W)

• Weight : 0.12 kg

• IP Rating : IP20 – protection against solid objects and finger contact

Compliance & Safety:

• Standards : IEC/EN 60898-1

• RoHS Compliant

• Overvoltage Category : III

Applications:

• Residential circuit protection (lighting, outlets, appliances)

• Office and commercial distribution boards

• Suitable for AC voltage systems (50/60 Hz)

Benefits:

• High-performance short-circuit protection in compact form

• Easy installation with compatibility for solid and multi-wired conductors (1-25 mm²)

• Built to withstand mechanical and thermal stress

• Trusted performance from Eaton's xPole PL6 series
