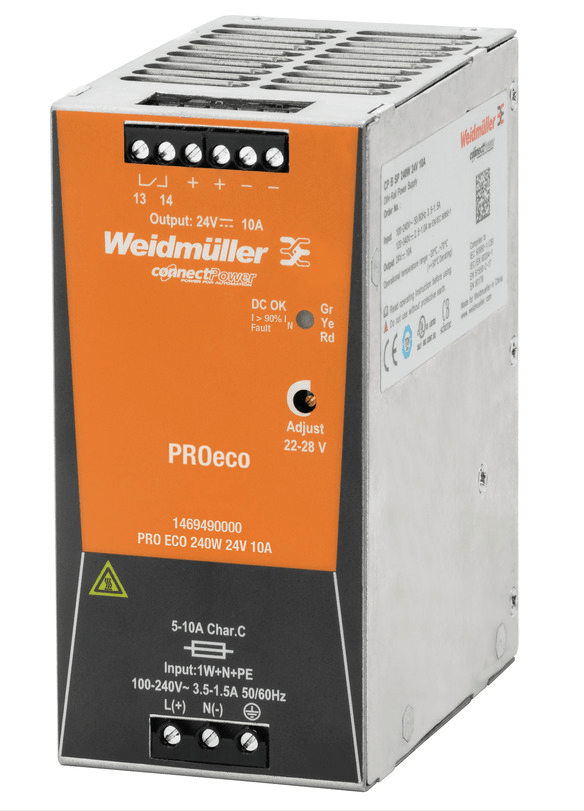

1469490000 PRO ECO Power suppy 240W 24V 10A

The Weidmüller PRO ECO 240W 24V 10A (1469490000) is a high-efficiency power supply unit designed to optimize automation applications in industrial settings. Compact and reliable, it is ideal for space-constrained installations such as control cabinets.

Key Features

• Performance & Compatibility:

  • Provides a 24V DC output (adjustable between 22V and 28V) with up to 10A.
  • Compatible with DC UPS, electronic load monitoring, and diode modules.

• Energy Efficiency:

  • Achieves a 90% efficiency rate, minimizing power loss.
  • Built-in overload, short-circuit, and over-temperature protection.

• Robust Design:

  • Metal housing with IP20 protection and a corrosion-resistant finish.
  • Operating temperature range: -25°C to 70°C.

• User-Friendly Features:

  • Three-color LED indicators for easy status monitoring (green, yellow, and red).
  • DIN rail mountable (TS 35) for quick installation.

Technical Specifications

• Input Voltage: 85–264V AC / 80–370V DC.
• Output Voltage: 24V DC ±1%.
• Dimensions: 100mm (D) x 125mm (H) x 60mm (W).
• Weight: 1,002 g.

This power supply complies with EN and VDE standards, ensuring safety and reliability for industrial applications.
