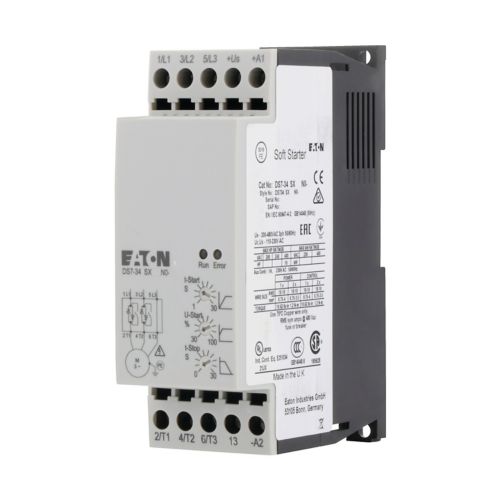

134847 Eaton DS7 Soft starter 4A 200-480VAC

The Eaton DS7 Soft Starter is a high-performance solution for starting and stopping three-phase asynchronous motors. With a space-saving design and advanced features, it ensures smooth motor operation, reduced wear, and reliable performance in various industrial applications.

Key Features

• Rated Current : 4 A
• Voltage Range : 200-480 V AC
• Control Supply Voltage : 24 V AC/DC
• Frame Size : FS1
• Soft Start Function : Adjustable ramp time (1-30 seconds) with start voltage adjustment (30%-100%).
• Built-In Bypass Contacts : Reduces heat dissipation and improves efficiency.
• Compact Design : Dimensions of 94 mm (L) x 130 mm (H) x 45 mm (W), with a weight of 0.35 kg.

Certifications and Compliance

• CE Marked, UL 508, CSA Std. C22.2 No. 14-05, IEC/EN 60947-4-2
• Designed for reliable operation under environmental and electrical standards.

Applications

• Ideal for controlling motors in industrial machinery, HVAC systems, and general automation processes.
• Suitable for three-phase motors up to:
  • 0.75 HP at 200/208 V
  • 1 HP at 220/230 V
  • 2 HP at 460/480 V

Environmental Conditions

• Operating Temperature: -5°C to 40°C
• Altitude: Up to 2000 m (1% derating per 100 m above 1000 m)
• Protection Class: IP20 (NEMA 1)

Benefits

• Reduces mechanical wear and electrical stress on motors during startup.
• Compact size for easy integration into control panels.
• Conforms to international standards, ensuring compatibility and safety.

This soft starter is a cost-effective and reliable choice for enhancing motor longevity and system performance in industrial settings.
